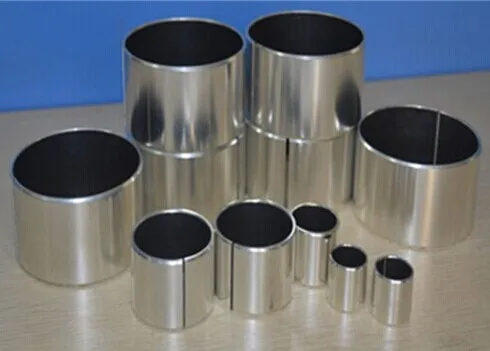

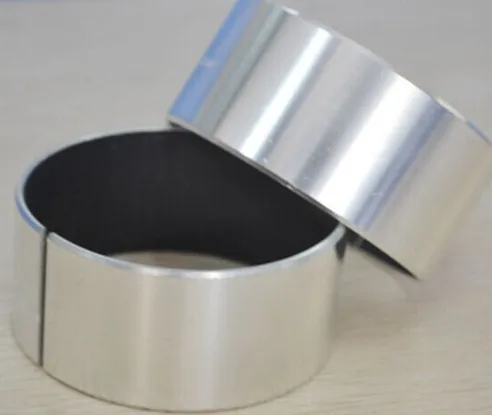

CAT322C CAT322 Iron PTFE Hydraulic Bush DU Bushing 90x95X30
DU BUSHNIGS 90x95X30 Iron + PTFE Cylinder hydraulic Rod bearing guidance seal color Silver+Red bucket pin seal
DU Bushing 90x95x30 is a common size of the rod bearing guidance seal, wide used for 20tons machine,such like CAT322C,CAT322,CAT324C Boom Cylinder, ZAX230-7,ZAX230-5/6 ,ZAX230E, ZAX240-6,ZAX250H,ZAX260LC-3G,6BG1 ZAX260LC,ZAX240-3 Boom and Bucket cylinder, PC200-7, PC220-1, PC220-2, PC220-3 ,PC220-7, PC230-7, PC240-7 Boom cylinder,SANY220LC,SANY230LC,SANY235LC Bucket cylinder ,SANY235C-8,SANY225-8 BOOM and BUCKET Cylinder, Sumitomo SH225X-3 Boom cylinder,Liugong LG230LC,LG925LC BOOM and BUCKET Cylinder,Kobelco SK230-6E,SK250-6E ,SK250LC-6ES BOOM and BUCKET Cylinder,SK220-1/2/3 ,SK220-5 Boom cylinder.
| CAt: | E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450 |
| KOMATSU: | 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6 |
| HITACHI: | UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450 |
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 |
Install and use
Attention should be paid to the installation and use of sealing ring:
Can not install the wrong direction and damage the lips. If there are scars above 50μm on the lips, it may cause obvious oil leakage.
Prevent forced installation. Do not use a hammer to knock in, but use a special tool to first press the sealing ring into the seat hole, and then use a simple cylinder to protect the lip through the spline. Before installation, apply some lubricating oil to the lips to facilitate installation and prevent burns during initial operation. Pay attention to cleaning.
Prevent overdue use. The service life of rubber seals for dynamic seals is generally 3000～5000h, and new seals should be replaced in time.
Bearing guidance Bushing DU excavator seals Bushing seals for bearing guidance mechanical seal
Working condition:
Max speed:5m/s
MAT:Metal

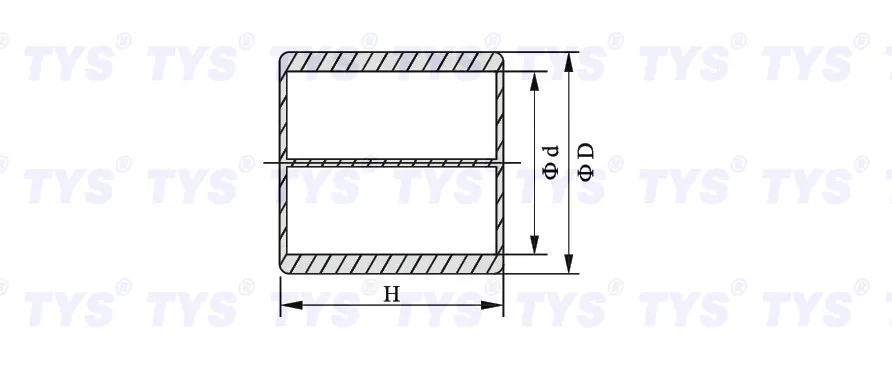

Structure and Groove:

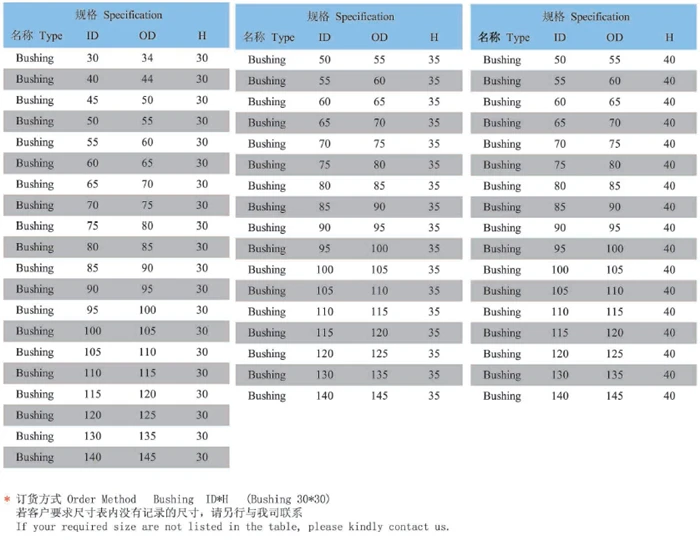

Specification:

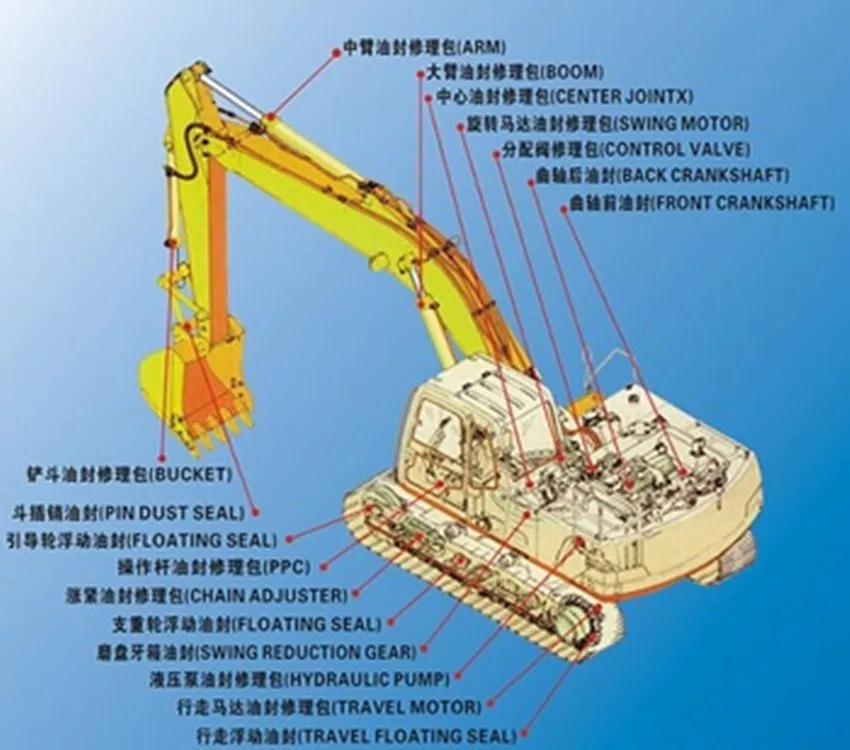

Excavator structure:
Product Tags:
|
|
CAT322C CAT322 Iron PTFE Hydraulic Bush DU Bushing 90x95X30 Images
|
